Highlights:
Power and Processing:
- 7-channel amplifier
- 95 watts per channel into 8 ohms (20-20,000 Hz) at .08% THD, with 2 channels driven
- Dolby Atmos processing for use with in-ceiling or "height" speakers for more enveloping surround sound (firmware update required)
- Dolby® and DTS® surround sound decoding, including Dolby Pro Logic® IIz
- analog-to-HDMI video upconversion (up to 1080p and 4K) with Marvell Qdeo video processing
- AccuEQ automatic speaker calibration optimizes your system's sound for your room (microphone included)
Digital and Streaming Music Options:
- built-in Wi-Fi for listening to music from a networked PC, free Internet radio, and music services
- includes support for Pandora, Spotify, SiriusXM, Slacker®, TuneIn, and Aupeo! (subscription required for some services)
- built-in Bluetooth for wireless music streaming from a compatible smartphone, tablet, or computer
- front-panel MHL-ready HDMI input for playing audio and HD video from select Android smartphones and tablets
- DLNA-certified for streaming music with compatible devices and computers
- plays high-resolution digital music files via USB storage device or a networked computer (up to 24-bit/192kHz resolution)
- plays DSD files (up to 2.8 MHz .dsf files) from network and USB storage devices
Multi-room Audio:
- dual-room/dual-source output
- powered and line-level stereo audio output for 2nd room
- using powered 2nd-room output allows 5.1 home theater in main room
- line-level 2nd-room output for use with a separate amplifier or powered speakers
- only analog, network, Bluetooth, or USB audio sources can be output to Zone 2
Audio Performance Features:
- high-current amplifier design with large power transformer
- 24-bit/192kHz Burr-Brown digital-to-analog converters
- Music Optimizer function enhances the sound quality of compressed music files
- bi-amp capability with compatible front speakers by reassigning "surround back" channels

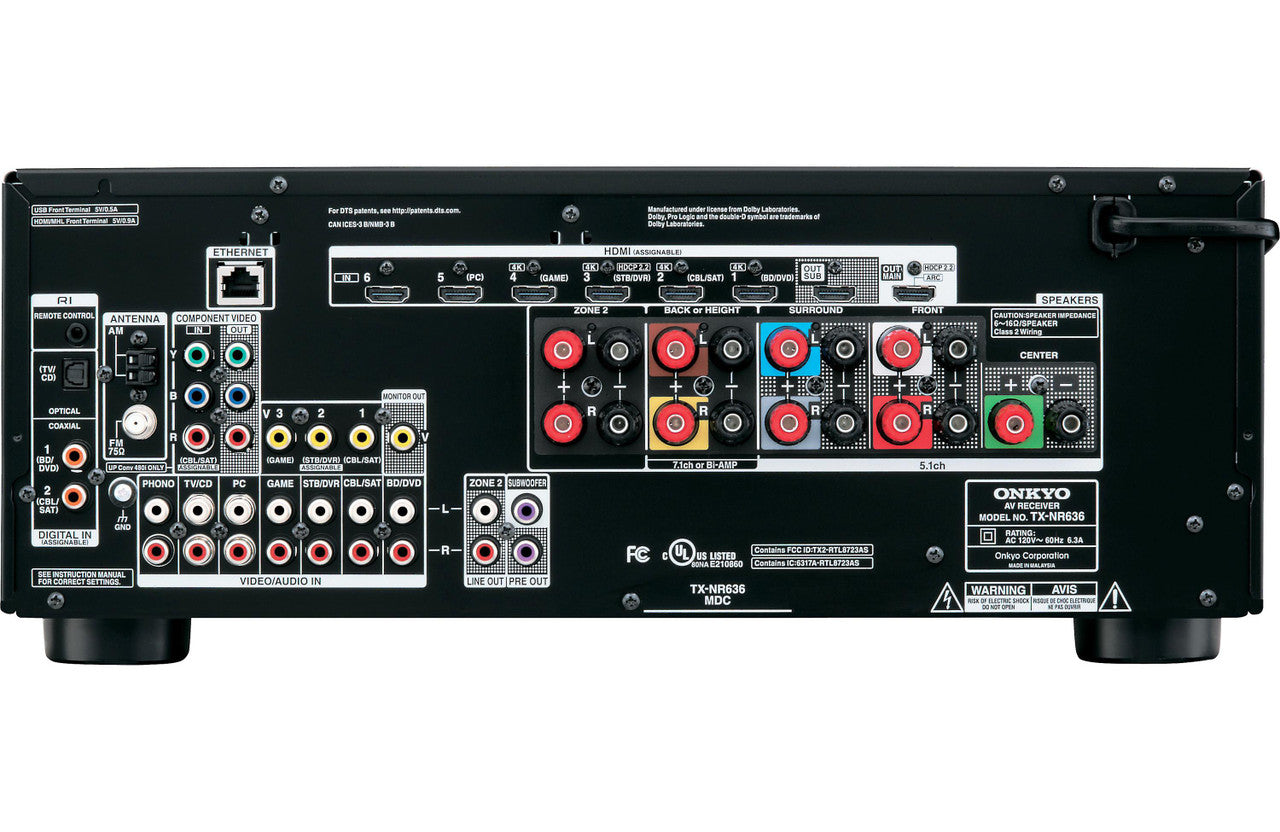

Connections:
- HDMI 2.0 audio/video switching: 7 in, 2 out (includes front-panel MHL-compatible input)
- component video switching: 1 in, 1 out
- composite video switching: 3 in, 1 out
- digital audio inputs: 1 optical and 2 coaxial
- 6 analog stereo audio inputs
- phono input for direct connection of a turntable
- preamp outputs for 2 powered subwoofers
- front-panel USB port for audio playback from USB storage devices
- Ethernet port for network connection
- outputs for 9 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Zone 2 L/R)
- receiver can power a maximum of seven channels at once
General Features:
- free Onkyo remote app lets you use your Apple or Android device as a Wi-Fi remote
- InstaPrevue offers live picture-in-picture preview of connected HDMI sources
- 4K/60p and 3D video pass-through
- HDCP 2.2 copy-protection compatibility for future 4K broadcast and streaming content (HDMI 3 input and main output only)
- HDMI standby pass-through allows access to all HDMI connected devices without having to power on the receiver
- Audio Return Channel function receives digital audio signals from a compatible TV's tuner via HDMI
- Phase-Matching Bass optimizes low frequencies to preserve clarity with vocals and movie dialogue
- 40 AM/FM presets
- remote control
- 17-1/8"W x 6-13/16"H x 13-5/8"D
- weight: 22 lbs.
Used In Very Good Condition: Included Remote Control, AM/FM Antenna, No Other Accessories. No Original Box. Returns:30 days money back guaranteed.
