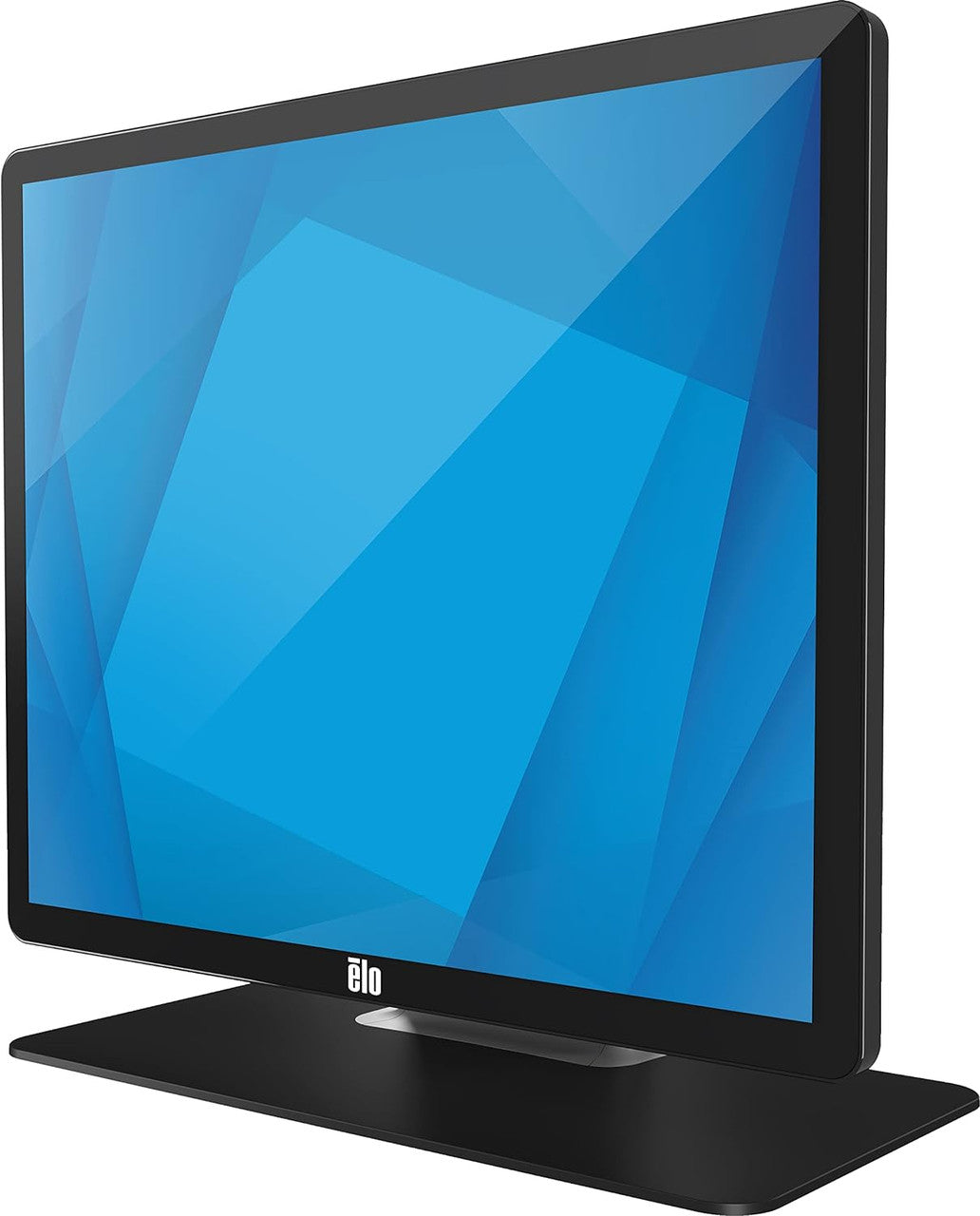

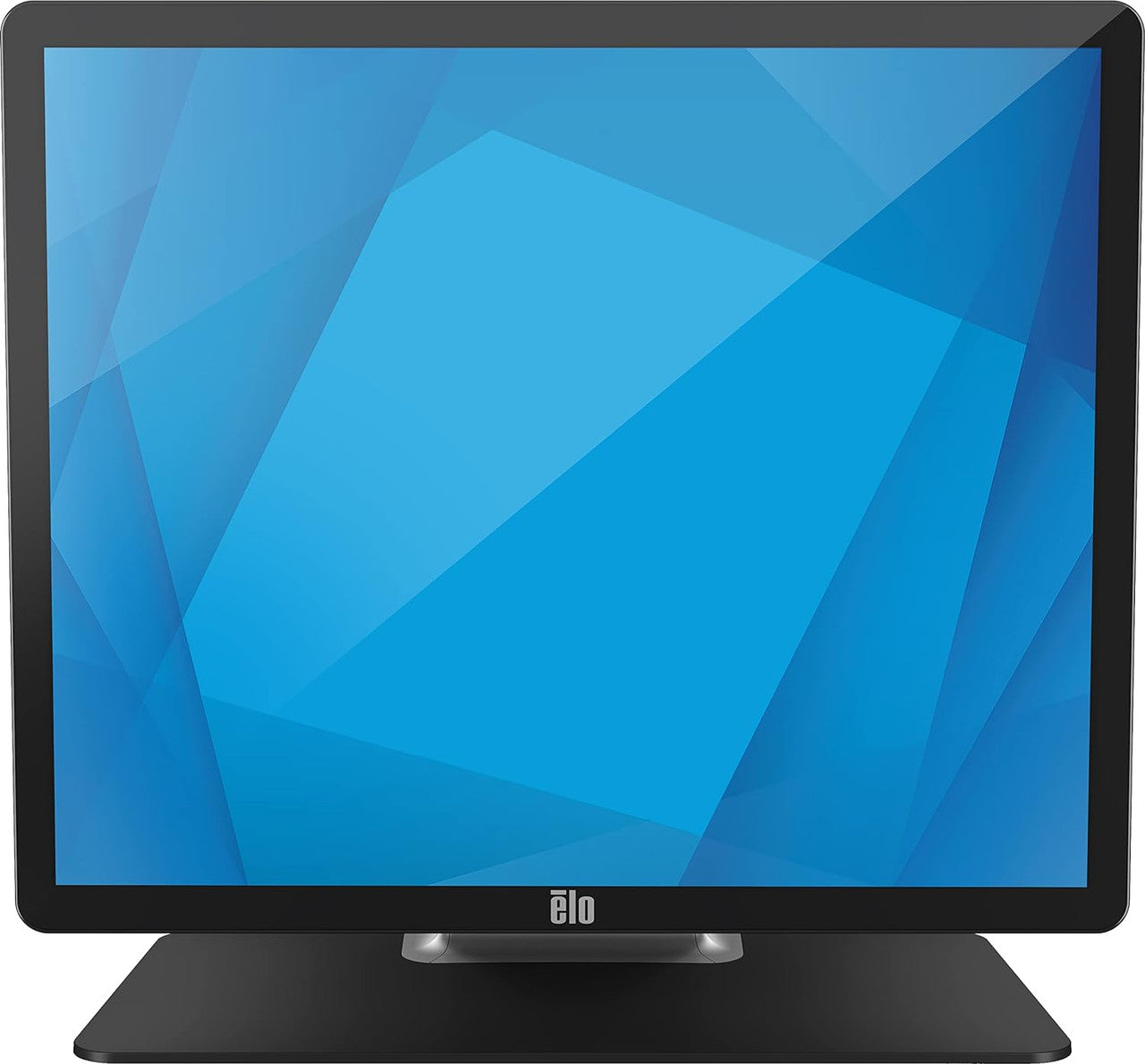

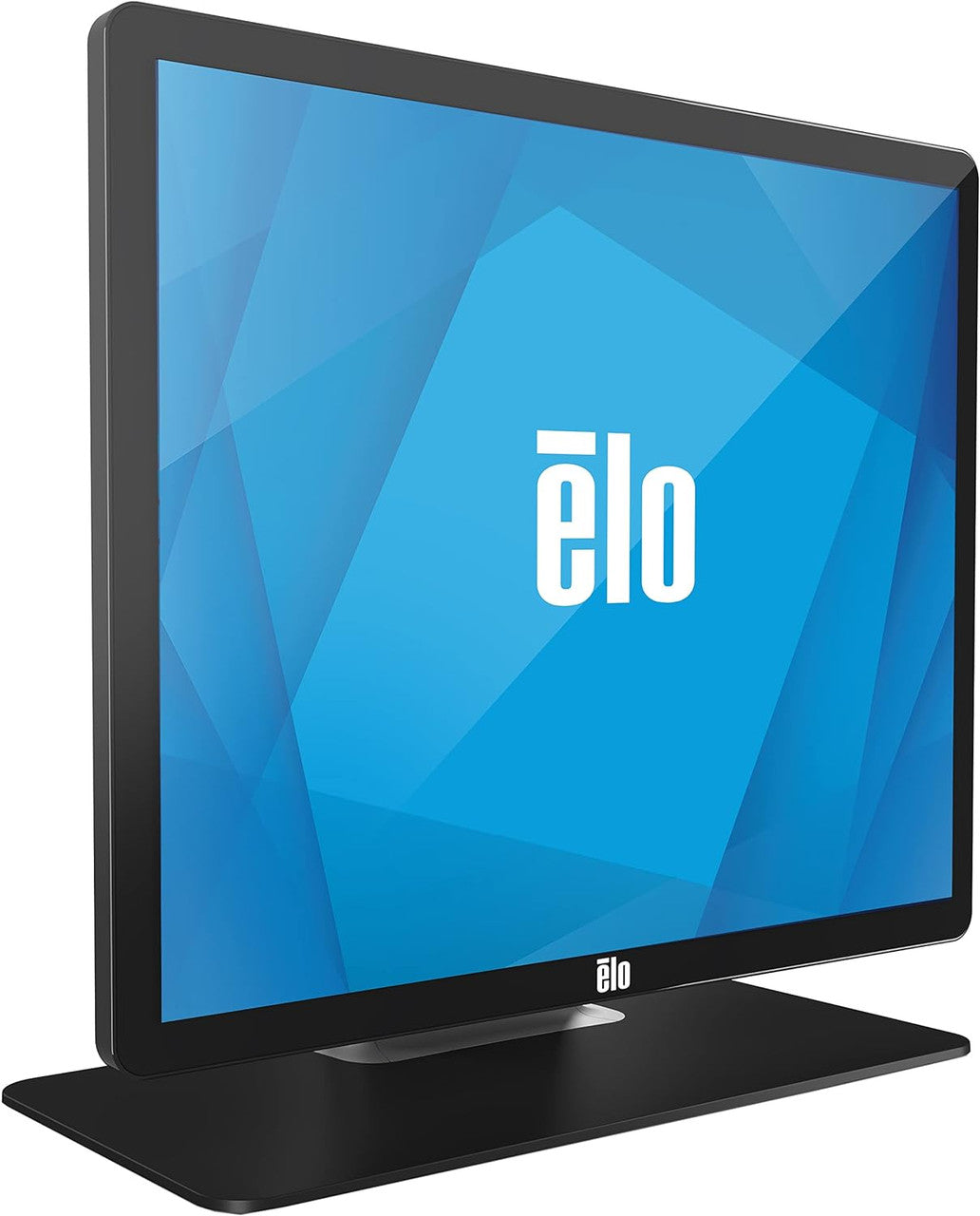

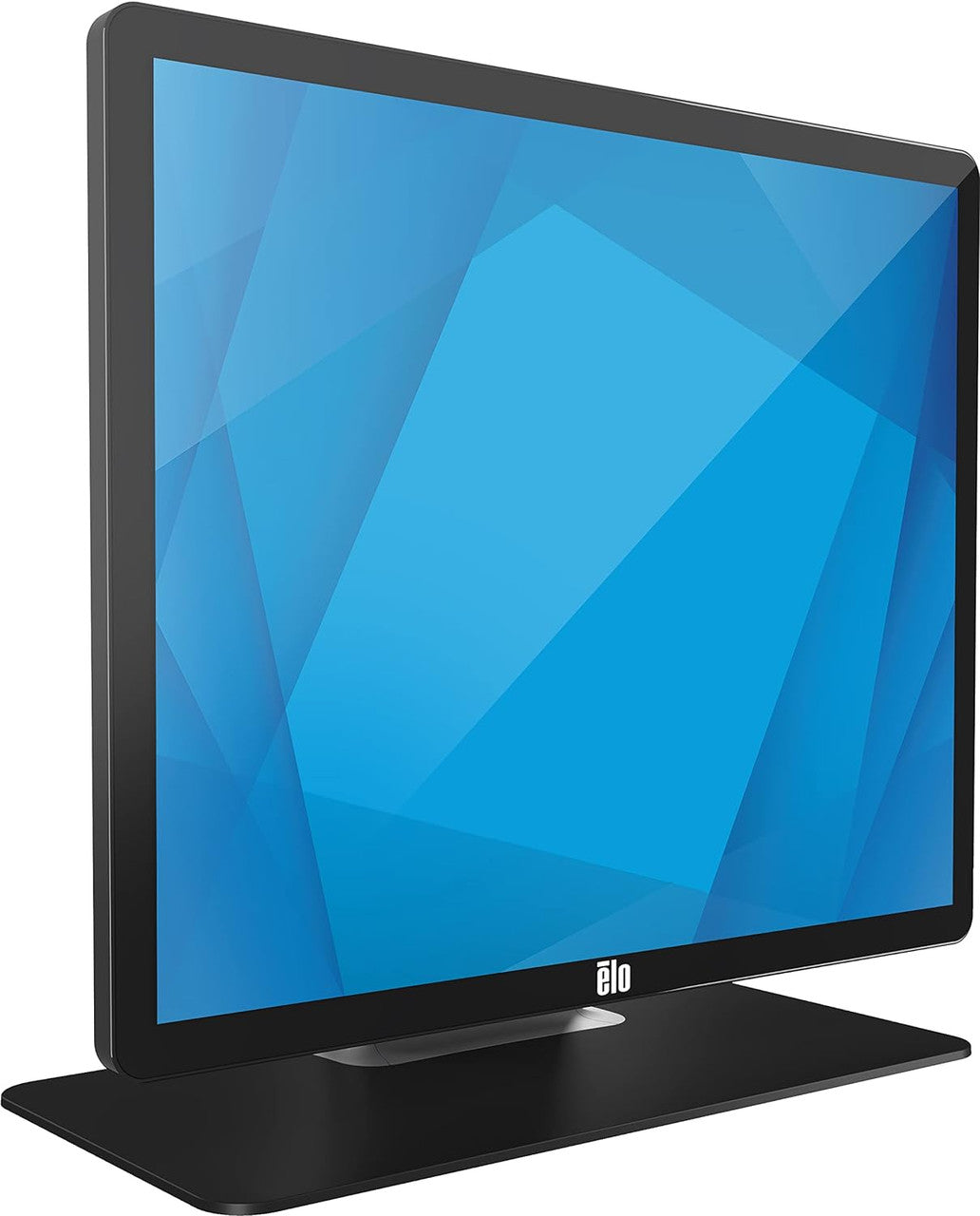

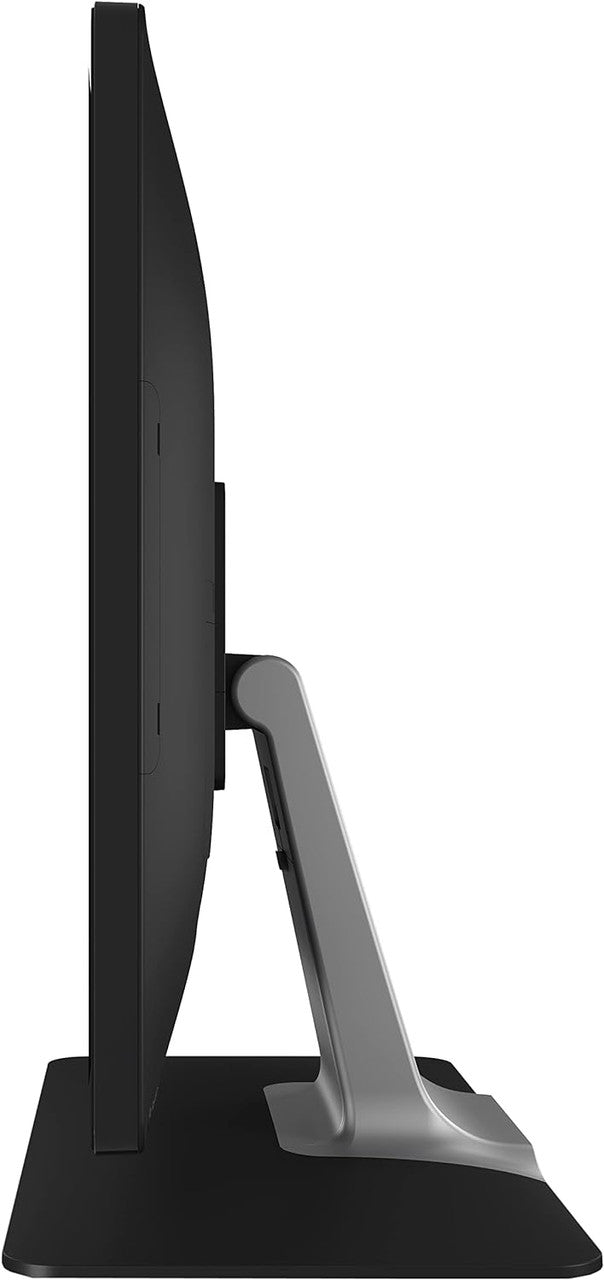

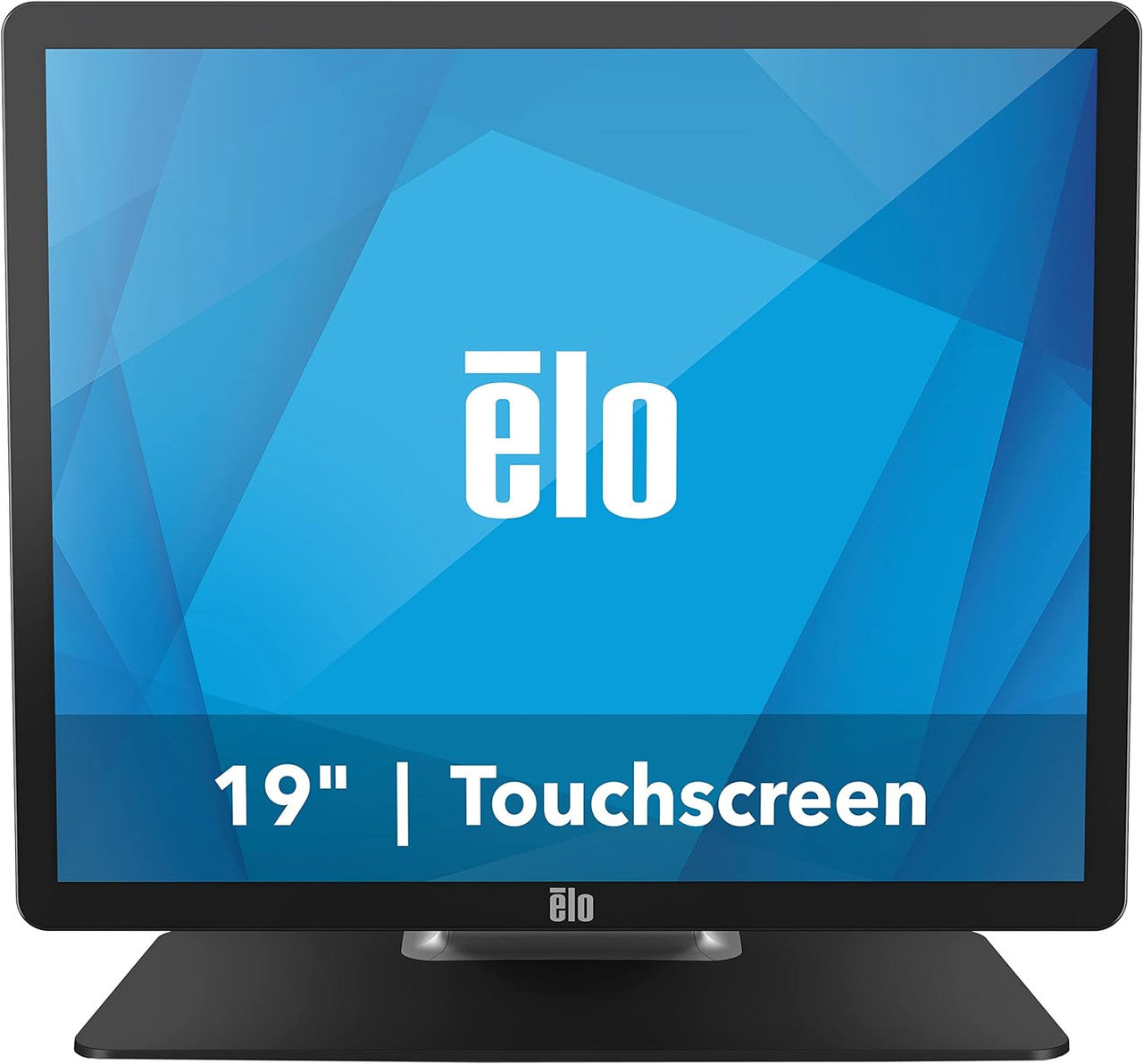

- Versatile 19" square display - Well-suited for retail, hospitality, government, restaurant, and rental and staging environments
- Elo Edge Connect peripherals allow you to add a variety of accessories including fingerprint scanner, MSR, barcode readers and many others (peripherals sold separately)
- TouchPro PCAP technology offers wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images
- Mount with flexibility – Standard VESA mount allows you integrate the Elo touchscreen monitor with ease
- With up to 10 touches enabled, the 02-Series Monitors provide a tablet-like experience
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Diagonal Size: 19'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 5:4
Active Area: 14.76" x 11.80" / 374.78 mm x 299.83 mm
Resolution: 1280 x 1024
Other Supported Resolutions
- 640 x 480 @ 60Hz
- 720 x 400 @ 70Hz
- 640 x 400 @ 70Hz
- 800 x 500 @ 60Hz
- 800 x 600 @ 56, 60Hz
- 1024 x 768 @ 60Hz
- 1280 x 720 @ 58Hz, 60Hz
- 1280 x 800 @ 60 Hz
- 1280 x 1024 @ 60Hz
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors: 16.7 million
Brightness (typical)
- LCD Panel: 250 nits
- TouchPro PCAP: 225 nits
Response Time-total (typical): 14 msec
Contrast Ratio: 1000:1
Touch Interface: USB
Surface Treatment: Clear
On Screen Display:
- Accessible through switches along the bottom:
- Controls: Menu, Up, Down, Select
- Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru
- Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean
- Lockouts: OSD, Power
I/O Ports
- VGA
- HDMI
- Combo Jack
- DC jack
- USB Type B
- USB 2.0 Type A
- 4x Micro USB
Speakers: Two 2W internal speakers
Input Video Format:
- VGA (VGA DE-15 (DB-15) Male connecter cable included)
- HDMI (HDMI cable included)
Input Video Frequency
- Horizontal: 30 – 82KHz
- Vertical: 50 - 75Hz
Power Consumption (Typical)
- Monitor + AC/DC adapter
- ON (Default - 80% Brightness): 13.07 W
- ON (Typical - 100% Brightness): 14.58 W
- SLEEP: 0.66 W
- OFF: 0.32 W
Input Voltage
- 12VDC +/- 5%
- 100-240VAC, 50/60Hz
Input Connector: Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)
Peripheral Mounting: 4x Micro USB side ports (Top, Bottom, Left, Right)
Monitor Dimensions (with Stand): 15.66" x 16.91" x 7.61" / 397.7 mm x 429.6 mm x 193.4 mm
Weight:: With Stand: 13.9 lbs / 6.3 kg
Weight (Packaged): With Stand: 21.6 lbs / 9.8 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
MTBF: 50,000 hours demonstrated

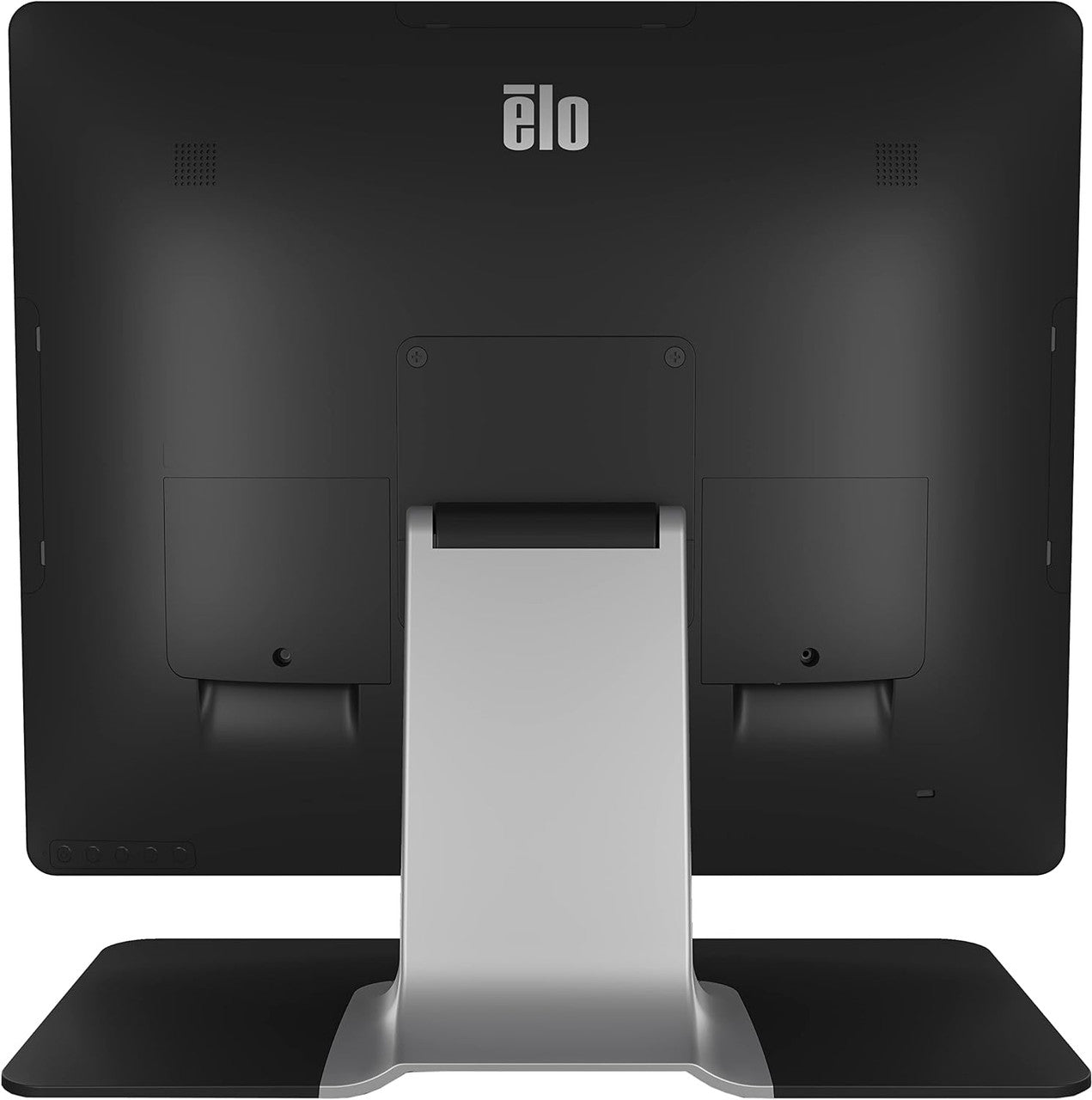

Mounting Options: VESA 4-hole 100mm mounting interface on rear of unit
Condition: Open Box in brand new condition, never used. Includes all accessories with original box. Returns: see current return and refund policy.
